Trinocular Inverted Biological Microscope 100x - 400x 9w Led Light

Product Categories

Ningbo Vanco Instrument Co.,Ltd

Contact Now

Name: Trinocular Inverted Biological Microscope 100x 400x 9w Led Light
Brand: VANCO
Price: 1 USD

Add to Cart

XDS-5 Inverted biological microscope

Main parameters	Total magnification		100X~400X(standard)
	Mechanical tube length		∝
	Conjugate distance of objective		∝
Eyepiece	Wide-field eyepiece		WF 10X		field of view number Ф22mm		Eyepiece interface Ф30mm	Parfocal distance 10mm
	Centering telescope
Trinocular	Inclination 45°,interpupillary distance:48 ~75mm .
objective	magnification	N.A		Work disstance(mm)		Thickness of cover glass (mm)		Remarks
	10X	0.25		4.27		1.2
	20X	0.40		8.0		1.2
	40X	0.60		3.5		1.2
Phase-contrast objective	10X	0.25		4.27		1.2		Remark"PHP2"
Nosepiece	Quadruple
Focus system	Coaxial coarse/fine focus, with tension adjustable and up stop, minimum division of fine focusing is 2μm. Effective distance.11mm
Condenser	Long working distance condenser, working distance: 70mm, and with pull board phase contrast unit
Stage	Mechanical Stage, moving range 77mm (longitudinal)X112mm (transverse), detachable stage moving device
	Culture dish holder	29mm (W)X77mm (L), optional with a circular culture dish Ф35mm
		34mm (W)X77.5mm (L), optional with a circular culture dish Ф68.5mm
		57mm (W)X82mm (L),optional with a circular culture dish Ф60mm

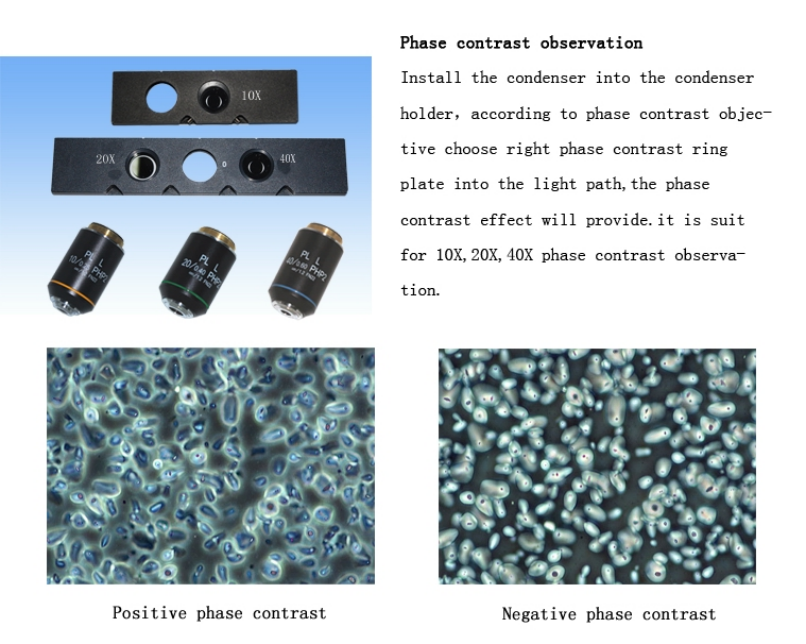

Phase-contrast condenser	Sliding phase contrast equipment ,center adjustable

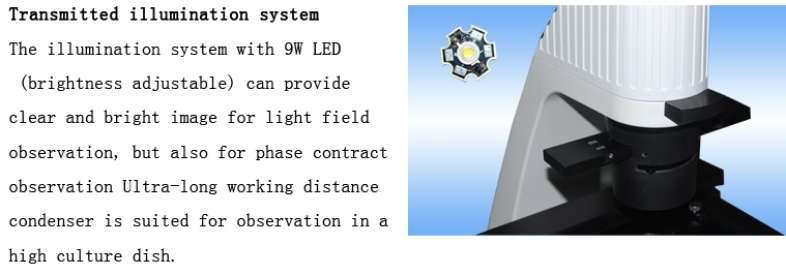

Illumination	9W LED,adjustble brightness
Filter	Frosted grass and blue filter
Accessory	hexagonal socket wrench(M4,M5)
