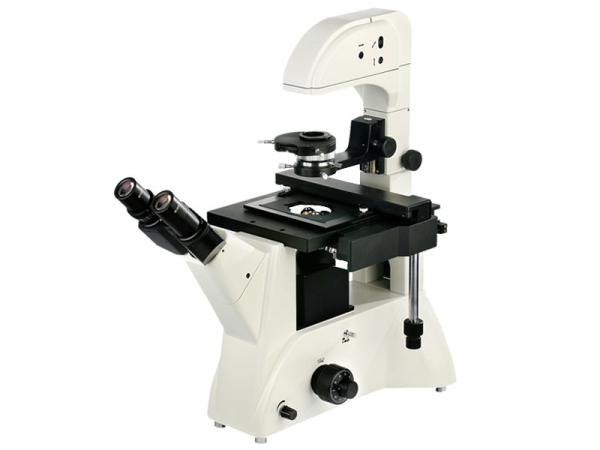

Research Culture Tissue Inverted Biological Microscope 100x - 400x

XDS-3 Inverted research biological microscope

XDS-3 Inverted biological microscope is equipped excellent UIS optical system including long working distance plan achromatic objective and wide field plan eyepieces. Compact and steady main frame body is embodiment for the shock resistance. The enable turning out or into condenser system is suited for observation in a high culture dish. The ideal ergonomic design is adopted in this unit and have easier operation and wider space. This is ideal optical instrument for micro observation in cell tissue and transmitted liquid tissue, even in dynamic observation in the culture dish tissue. It can be used in scientific research, universities, medical treatment, epidemic prevention, agriculture etc.

Standard configuration

Specification
Eyepiece	Wide field WF10X(field number:Φ22mm)
	Centering telescope
Infinity and long working distance plan achromatic objective	Objective	PLL 10X0.25 Work distance:4.3 mm£¬Cover glass thickness:1.2mm.
		PLL 20X0.40 Work distance:8.0 mm£¬Cover glass thickness:1.2mm.
		PLL 40X0.60 Work distance:3.5 mm£¬Cover glass thickness:1.2mm.
	Phase Contrast Objective	PLL 10X0.25 PHP2 Work distance:4.3 mm£¬Cover glass thickness:1.2mm.
Eyepiece tube	Inclination angle is 45˚ and interpupillary distance is 53~75mm.
Focus system	Coaxial coarse/fine focus, with tension adjustable and up stop minimum division of fine focusing is 2μm.
Nosepiece	Quintuple nosepiece
Stage	Fixed stage overall size is 227mmX208mm
	Glass rotundity stage overall size is Ф118mm

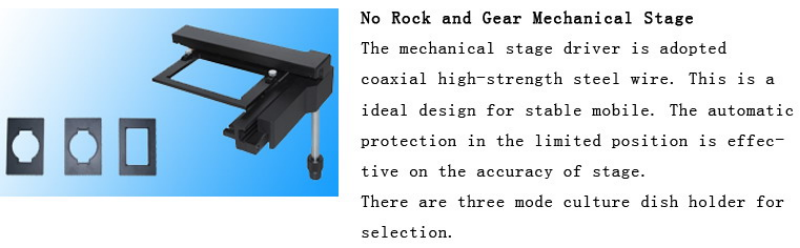

	Mechanical moving device, moving range is 77mm (longitudinal)X114mm (transverse)
	Culture dish holder 1		Inside locating slot size: 86mm (W)X129.5mm (L), optional with a circular culture dish Ф90mm
	Culture dish holder 2		Inside locating slot size: 34mm (W)X77.5mm (L), optional with a circular culture dish Ф68.5mm
	Culture dish holder 3		Inside locating slot size::57mm (W)X82mm (L),optional with a circular culture dish Φ60mm
	culture dish holder 4		inside locating slot size:29mm(W)X77.5mm(L),optional with a circular culture dish Φ35mm
Condenser system	Long working distance condenser, working distance: 55mm, and with turnplate phase contrast unit
Illumination system	6V30W halogen, brightness enable control
Filter	Frosted glass and blue , green filter
