Culture Tissue 100x-400x Inverted Research Microscope 6v 20w Halogen Lamp

    Buy cheap Culture Tissue 100x-400x Inverted Research Microscope 6v 20w Halogen Lamp from wholesalers

    Buy cheap Culture Tissue 100x-400x Inverted Research Microscope 6v 20w Halogen Lamp from wholesalers
    • Buy cheap Culture Tissue 100x-400x Inverted Research Microscope 6v 20w Halogen Lamp from wholesalers

    Culture Tissue 100x-400x Inverted Research Microscope 6v 20w Halogen Lamp

    Ask Lasest Price
    Brand Name : VANCO
    Model Number : XDS-1
    Certification : CE
    Payment Terms : T/T
    Supply Ability : 50PCS/MONTH
    Delivery Time : 2 weeks after confirmation
    • Product Details
    • Company Profile

    Culture Tissue 100x-400x Inverted Research Microscope 6v 20w Halogen Lamp


    XDS-1 Inverted research biological microscope


    XDS-1 Inverted microscope is equipped with wide field eyepieces, long working distance plan achromatic objectives, long working distance condenser and phase contrast unit. It can be observed transparent and unfinished living specimen in culture bottle or culture utensil. It is the ideal instrument suitable for research of living specimen structure, liquid, deposits and so on. It also can be used in research institutes, universities, medical treatment, agriculture and animal husbandry etc.






    Standard configuration

    ModelXDS-1
    EyepieceWide field WF10X(¦µ20mm)
    ObjectiveLong working distance plan achromatic PL L 10X/0.25
    Long working distance plan achromatic PL L 25X/0.40
    Long working distance plan achromatic PL L 40X/0.60
    Long working distance plan achromatic phase contrast objective PL L 10X/0.25 PHP
    Eyepiece tubeTrinocular (Inclination of 30°, 100% image light for photography capable)
    Focus systemCoaxial coarse/fine focus, with tensional adjustable and up stop minimum division of fine focusing: 2μm.
    NosepieceQuadruple(Ball bearing inner locating)

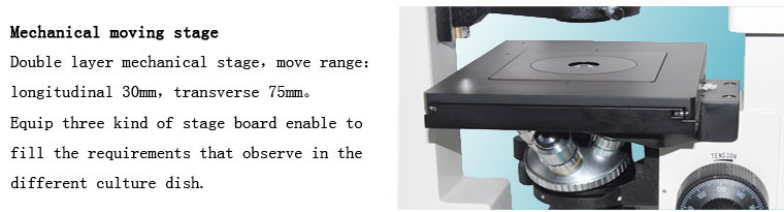

    StageDouble layer mechanical(Size200mmX152mm,moving range:75mmX30mm)
    Shelf of specimenMatch to install ¦µ68mm or 77mmX33mm culture utensil
    Match to install ¦µ68mm culture utensil
    FilterBlue filter
    Green filter
    Frosted filter
    Impellent style phase contrast unitCentering telescope
    10X Impellent style phase plate
    Condenser Rack & pinion adjustable, NA=0.4,working distance: 30mm
    Light source6V 20W Halogen lamp with brightness control.
