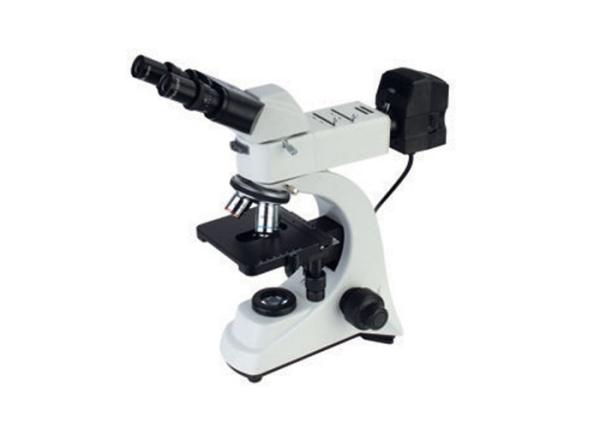

    Coaxial Fine Upright Metallurgical Microscope , Binocular Metallurgical Microscope

    Ask Lasest Price
    Brand Name : VANCO
    Model Number : HJ1
    Certification : CE
    Price : Negotiable
    Supply Ability : 50pcs/month
    Delivery Time : As per order quantity
    • Product Details
    • Company Profile

    Coaxial Fine Upright Metallurgical Microscope , Binocular Metallurgical Microscope

    HJ1 Plan achromatic objectives with long working distance metallurgical microscope


    Specification

    Metallurgical microscope is widely used for metallurgical ,mineral identification and crystal,integrated circuit examination and research .It is available to be supplied with transmitted illumination ,imaging and viewing system and accessories as a biological microscope for medical institute use .

    PARTSSPECIFICATIONSHJ1
    Viewing headBinocular head
    Eyepiece

    WF10X/18mm

    WF10X/18mm

    WF10X/18 W/0.1mm micrometer and cross hair

    Infinitie plan achromatic objective

    4X/0.1/∞/-WD25.4mm

    10X/0.25/∞/-WD11.0mm

    20X/0.40/∞/-WD6.0mm

    40X/0.60/∞/-WD3.7mm

    80X/0.90/∞/-WD0.2mm

    NosepieceQuadruple nosepiece
    StageDouble layer mechanical stage,size 150x140mm,movement 75x50mm
    FocusingCoaxial fine and coarse adjustment
    IlluminatorKohler illumination,Epi-Illuminator with iris aperture diaphragm and iris field diaphragm. 220V or 110V /6V20W halogen lamp.Brightness adjustable
    FiltersBlue,Green,Yellow,Ground Glass
    Polariztion attachment

    ● Item included ○ Optional
