    Compact Structure Polarized Optical Microscopy Fine Focusing Adjustable Mechanism

    Ask Lasest Price
    Brand Name : VANCO
    Model Number : VP-2005B
    Certification : CE
    Price : Negotiable
    Supply Ability : 50pcs/Month
    Delivery Time : As per order quantity
    • Product Details
    • Company Profile

    Compact Structure Polarized Optical Microscopy Fine Focusing Adjustable Mechanism

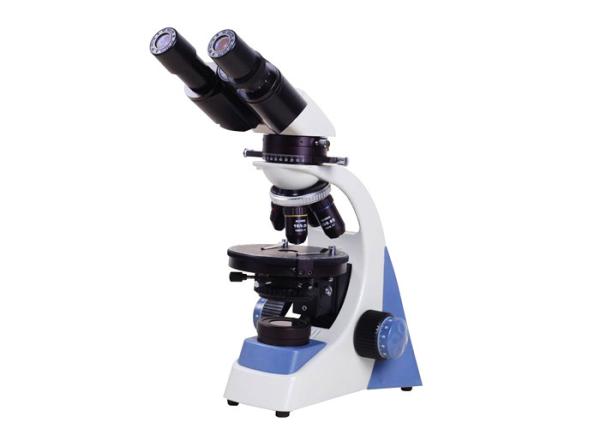

    VP-2005B Polarizing microscope


    Polarizing microscope is widely used in mineral, polymer, fiber, glass, semiconductor, chemical and other fields,using the lights' polarization characteristic to research and identify double refraction material; users are able to make single polarization observation, orthogonal polarization observation, cone light observation etc.


    EyepieceWide Field Plan-scope Eyepiece: WF10X/18mm
    Objective45mm DIN Achromatic Objective: 4X,10X,40X(S), 100(S,Oil)
    Head

    Articulated Free Binocular Head, Interpupillary Distance:55-75mm;

    30°Inclined, 360°Rotatable;

    Rotatable Analyzer with Graduation 0°-90°, Sliding out of Optical Path;

    StageRevolving Round Stage: Φ160mm; 360° Rotatable and Graduated 1° Increments, Minimum Resolution 6’;
    CondenserABBE Condenser: N.A.1.25; Ф2-Ф30mm Iris Diaphragm and Ф32 Filter
    Focusing AdjustmentCoaxial Coarse and Fine Focusing Adjustable Mechanism: 14mm, precision: 0.01mm
    Others

    Optical Compensator:λSlip(First Class Red), 1/4 λSlip

    Polarize: On The Light Collector; 360° Rotatable

    IlluminationBuilt-in Adjustable Brightness 1W LED Lamp
    OptionalEyepieces WF16X;
    Net Weight4kg

    Package

    1set/Foam + Inner Carton

    2sets/Outer Carton,Gross Weight/Carton: 10.8kg

    Carton Dimension: 44X37X47cm
