    10X Eyepiece Handheld Portable Metallurgical Microscope

    Ask Lasest Price
    Brand Name : Vanco
    Model Number : VM34
    Certification : CE
    Price : USD155-168
    Payment Terms : T/T
    Supply Ability : 200pcs per month
    Delivery Time : 2-4 weeks after order confirmation
    • Product Details
    • Company Profile

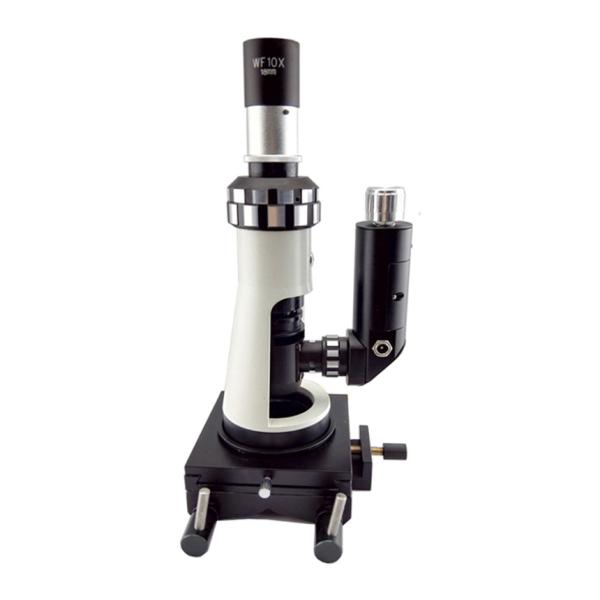

    10X Eyepiece Handheld Portable Metallurgical Microscope

    VM34 Handheld Metallurgical Microscope


    This Portable Metallurgical Microscope has vertical light source, it is easy to use in field or identify the structures of all kinds of metal and alloy when failure in making sample. It can be widely used in identification of casting quality, inspection of raw material or metallurgical structures research and analysis of processed material in factory and laboratory, also can be used in antique gem and surface finesse observation.


    Specification
    Model No.VM34 Portable Metallurgical Microscope
    EyepieceWF10X/18mm, Dia.23.2
    ObjectiveLong Working Distance Plan Achromatic Objective10X
    Long Working Distance Plan Achromatic Objective40X
    AdapterC-mount adapter (for connecting C-mount cameras)
    Mechanical Tube Length160mm
    Focusing System36mm
    Polarize KitsPolarizer and Analyzer
    Light Source100-240V, Coaxial illumination, build-in LED rechargeable, brightness adjustable
    Packing CasePortable aluminum case
    Optional Accessorry
    Magnet StageMagic stage, which can be sticked on metal samples, make observation easier
    CCD AdapterStandard CCD adapter(Can be connected to camera)
    ObjectiveLong Working Distance Plan Achromatic Objective20X
    Long Working Distance Plan Achromatic Objective60X
    Long Working Distance Plan Achromatic Objective80X
    Long Working Distance Plan Achromatic Objective100X
    Quality 10X Eyepiece Handheld Portable Metallurgical Microscope for sale
